Product Description

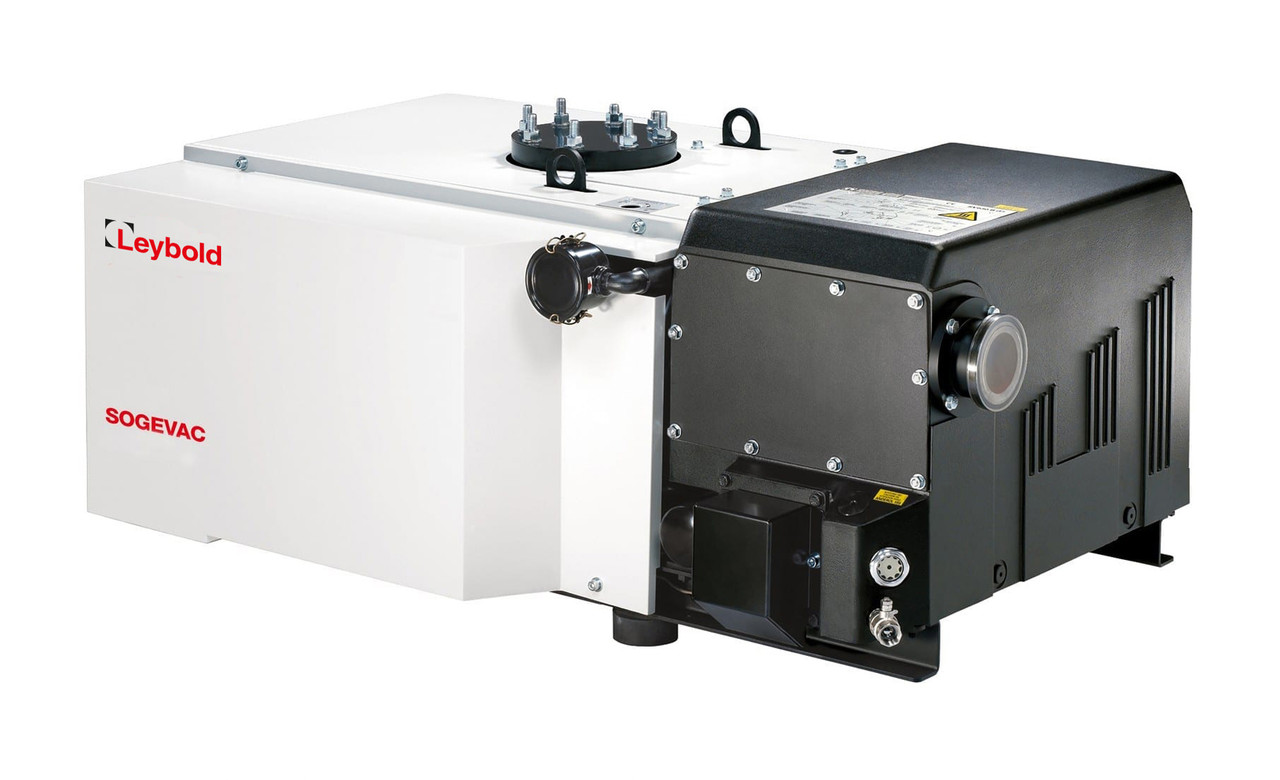

SOGEVAC SV 630 B
| Part number: | 960865 |
| Operating fluid: | LEYBONOL LVO 130 |
| Pumping speed (50 Hz): | 640 m³/h |
| Pumping speed (60 Hz): | 755 m³/h |
| Ultimate pressure: | 0.08 mbar |
Inlet connection:4" ASA 150 / 100 ISO-K
Outlet connection:4" ASA 150 / 100 ISO-K
Nominal pumping speed at 50 Hz:700 m3/h412 cfm
Nominal pumping speed at 60 Hz:840 m3/h494 cfm
Pumping speed at 50 Hz:640 m3/h377 cfm
Pumping speed at 60 Hz:755 m3/h444 cfm
Ultimate partial pressure without gas ballast:≤ 8.0 x 10-2 mbar≤ 6.0 x 10-2 Torr
Ultimate total pressure without gas ballast:≤ 8.0 x 10-2 mbar≤ 6.0 x 10-2 Torr
Ultimate total pressure with one gas ballast valve:≤ 0.7 mbar≤ 0.5 Torr
with two gas ballast valves:≤ 2.0 mbar≤ 1.5 Torr
Mains connection:3-ph, 400 V, 50 Hz
3-ph, 230/460 V, 60 Hz
Motor rating at 50 Hz:18.5 kW25.0 HP
Motor rating at 60 Hz:18.5 kW25.0 HP
Weight:≈ 655 kg≈ 1.444 lbs
