Product Description
Ai Clear10 short path distillation kit features
- Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets
- Heavy wall glassware for durability
- Vacuum jacketed vapor channel
- Boiling flask to distillation port: 34/45 joint
- Thermo port on boiling flask: 24/40 joint
- Thermo port on distillation head: 14/20 joints
- Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
- Glass material: high borosilicate glass 3.3
- Optional T1 or T40 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it
Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

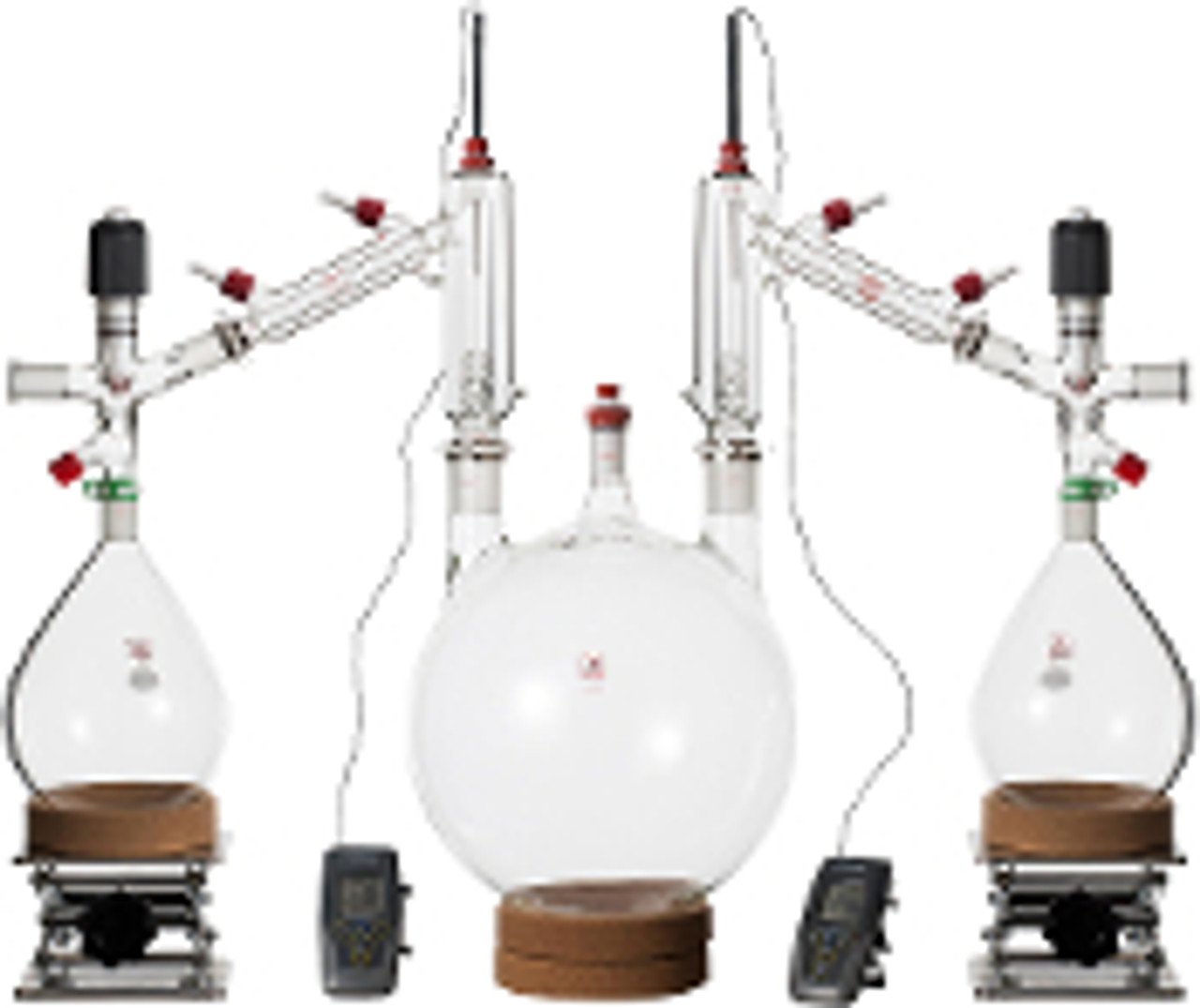

Clear10v Standard Package
|
Part description |
Quantity |
Part image |
| Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port |
2 pcs |  |
| Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks |
1 pc |  |
| PTFE 24/40 joint thermometer inlet adapters with Viton gaskets | 3 pcs |  |
| Ai 24/40 joint, pennyhead glass stopper | 2 pcs |  |
| Ai 24/40 joint, round-top glass feeding funnel |
1 pc |  |
| Ai valved adapter with two 24/40 ports and one GL16 port |
2 pcs |  |
| Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask | 2 pcs |  |
| Ai glass 3/8" hose barb tee adapter | 3 pcs |  |
| 34/45 joint, stainless steel keck clip | 2 pcs |  |
| 24/40 joint, stainless steel keck clip | 2 pcs | |
| 24/40 joint, plastic keck clip |
2 pcs |  |
| Cork ring stand for 1L or 2L pear-shaped flasks |
2 pcs |  |
| 6 x 6" stainless steel lab jack (min. height 3", max height 9.5") |
2 pcs |  |
| Dow Corning high vacuum grease 5.3 oz | 1 pc |  |
| Traceable Kangaroo digital thermometer | 2 pcs |  |
Contact Us for options
