Product Description
Overview

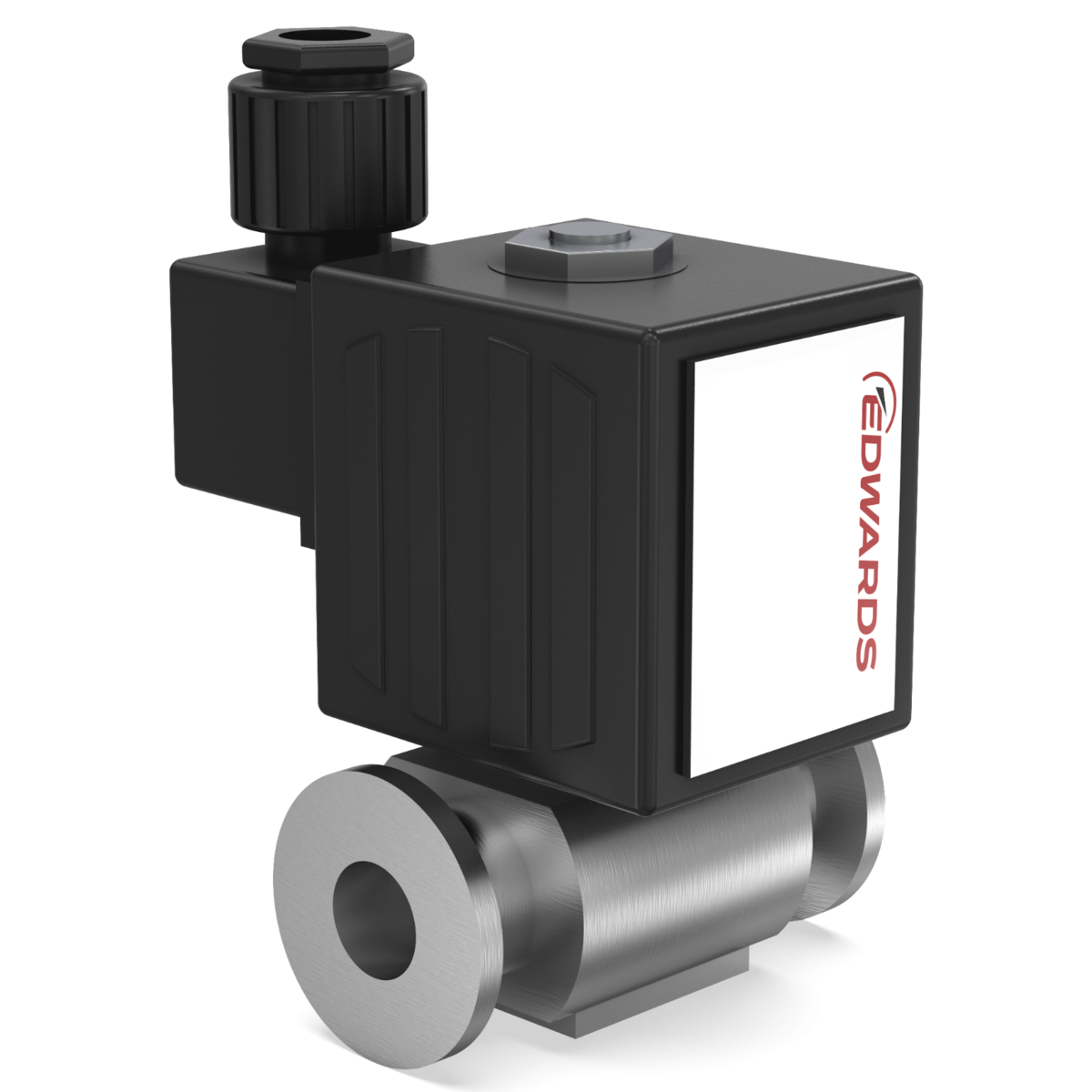

The IPVA10EK is a solenoid operated valve designed for automatic admittance of air or vent gas into a vacuum system. The valve has two ports with NW flanges. One of the valve ports is connected to the vacuum system, the other port can be left open to atmosphere or connected to a vent gas supply. The vacuum system is isolated from atmosphere (or the vent gas supply) by a fluoroelastomer pad on the base of the valve plunger, which seals against the body of the valve.
Technical Data
| Connection Vacuum Inlet Flange | DN 10 ISO-KF (NW10) |
| Operating temperature range | -20 to 55 °C |
| Vent gas temperature range | -10 to 130 °C |
| Venting rate | 10 litres in 12 s |
| Response time | 20 ms to open |
| 30 ms to close | |
| Maximum cycle frequency | 100 min-1 |
| Reliability (MTTF) | 500,000 cycles |
| Leak rate | <1 x 10-6 mbar ls-1 |
| <8 x 10-7 Torr ls-1 | |
| Electrical supply | 110V a.c. 1ph, 50/60 Hz |
| 230V a.c. 1ph, 50/60 Hz | |
| 24V d.c. | |
| Tolerance | |
| Normally closed | |
| a.c. | -10% to +10% |
| d.c. | -10% to +10% |
| Normally open | |
| a.c. | -10% to +10% |
| d.c. | -5*% to +10% |
| Power | |
| Normally closed | |
| a.c. | 5 W |
| d.c. | 5 W |
| Normally open | |
| a.c. | 10 W |
| d.c. | 9 W |
| Enclosure rating | IP65 |
| Weight | 350 g / 12.4 oz |
| Materials of construction** | |
| Body | Aluminium |
| Valve seal | Fluoroelastomer |
| Actuator | Stainless steel |
| Coil insulation | Class H |
| Shading rings | Silver |
The air or vent gas path through the valve is free from heavy metals.
*Voltage tolerance reduced at elevated ambient temperatures, maximum recommended ambient temperature: 40oC
**Normally open variants have an additional carbon loaded PTFE slide ring within the vacuum envelope
Dimensions
| Normally open valves | Voltage | |
| C417-60-000 | 230 V a.c. | Figure B |
| C417-60-100 | 110 V a.c. | Figure B |
| C417-60-200 | 24 V d.c. | Figure A |
| Normally closed valves | ||
| C417-70-000 | 230 V a.c. | Figure A |
| C417-70-100 | 110 V a.c. | Figure A |
| C417-70-200 | 24 V d.c. | Figure B |
