Product Description

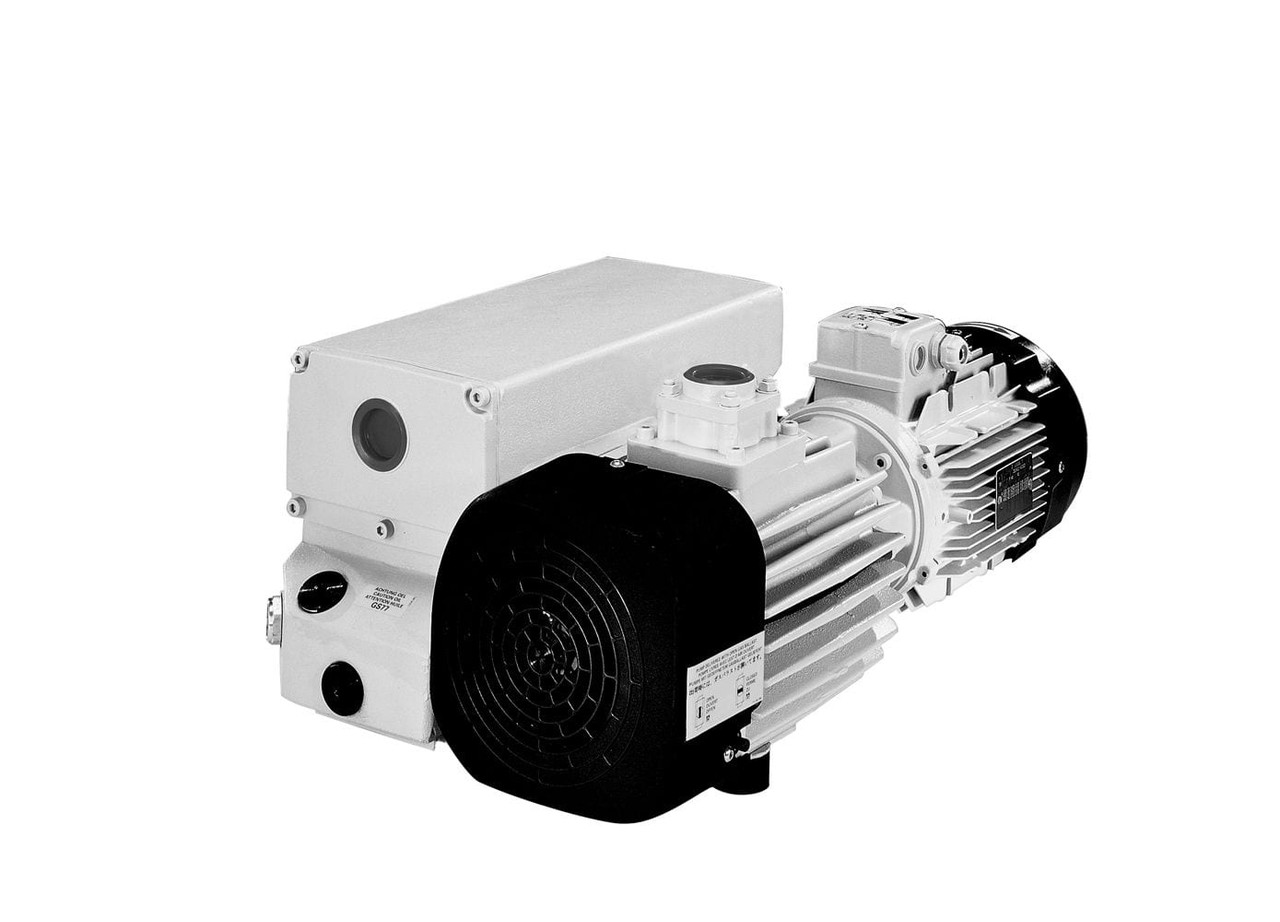

SOGEVAC SV 120 B - with standard gas ballast valve
Part-No.:960557
Inlet connection:G 1 1/4" Inside thread
Outlet connection:G 1 1/4" Inside thread
Nominal pumping speed at 50 Hz:130.0 m3/h77.0 cfm
Nominal pumping speed at 60 Hz:147.0 m3/h86.0 cfm
Pumping speed at 50 Hz:110.0 m3/h65.0 cfm
Pumping speed at 60 Hz:120.0 m3/h72.0 cfm
Mains connection:3-ph, 230/400 V, ±10%, 50 Hz3-ph, 230/400/460 V, ±10%, 60 Hz
| Part number: | 960557 |
| Gas ballast: | Standard |
| Operating fluid: | LEYBONOL LVO 130 |
| Pumping speed (50 Hz): | 110 m³/h |
| Pumping speed (60 Hz): | 120 m³/h |
| Ultimate pressure: | 0.5 mbar |
