Product Description
Edwards Kit Major Service Ed for RV3.
OEM

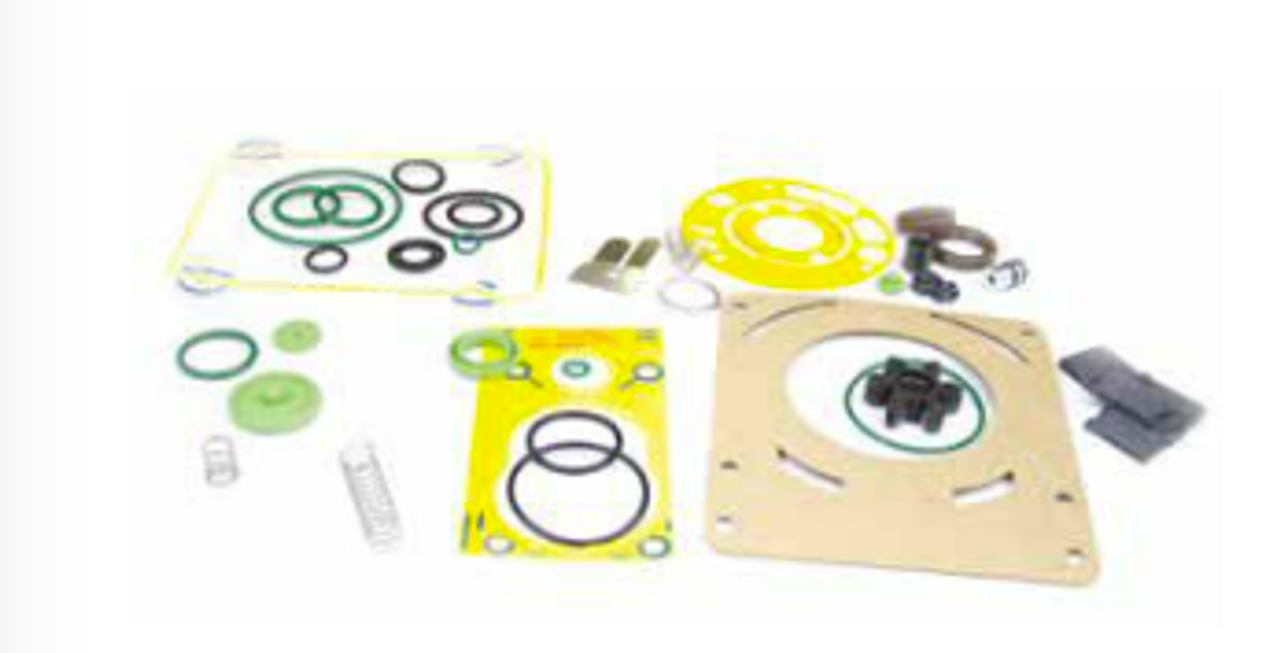

Major repair kit for Edwards RV3, including vanes.
This Edwards RV3 major repair kit includes all components from the P65201131 clean and overhaul kit plus the RV3 blade kit for a complete rebuild. Replacing vanes, seals, gaskets, and valve components restores vacuum performance, reduces oil contamination, and extends pump life.
Includes A65201130 Blade Kit for Edwards RV3 vacuum pumps.
Kit Includes
Vanes
- A65201130 – Blade Kit, Edwards RV3 (Qty 1)
Coupling & Drive Components
Valve & Service Components
- A25908123 – Exhaust Diaphragm (Qty 1)
- A25908129 – Oil Pressure Valve (Qty 1)
- A65201029 – Reed Valve (Qty 1)
- A65201005 – Air Bleed Assembly (Qty 1)
- A25908226 – Dump Valve (Qty 1)
- 20525-049 – Spring (Inlet Valve) (Qty 1)
- 20525-047 – Spring (Dump Valve) (Qty 2)
- 20525-048 – Spring (Ballast Control) (Qty 1)
Gaskets
- 27160707 – Top Plate Gasket (Qty 1)
- A27160005 – Oil Box Gasket (Qty 1)
- A27160006 – Cartridge Gasket (Qty 1)
- A27160008 – Seal Carrier Gasket (Qty 1)
- A65201019 – Motor Ducting Sheet (Qty 1)
Seals, Spacers & O-Rings
- U Seal – U Seal FKM (Qty 1)
- Shoulder Washer – Ballast Washer (Qty 1)
- H02109125 – Shaft Spacer (Qty 1)
- Shaft Seal – Shaft Seal Babsl 20 x 30 x 7 (Qty 1)
- O-Ring – Nitrile 21.5 ID x 3.0 Section (Qty 3)
- H02122079 – O-Ring 49.5 ID x 3.0 (Qty 1)
- O-Ring – Nitrile 32.5 ID x 3.0 (Qty 1)
- O-Ring – FKM 7.6 ID x 2.4 (Qty 1)
- O-Ring – FKM 57.6 ID x 2.4 (Qty 1)
- O-Ring – Nitrile 42.5 ID x 3.0 (Qty 1)
- O-Ring – FKM 1.109 ID x .139 (Qty 3)
- O-Ring – FKM 9.6 ID x 2.4 (Qty 1)
- O-Ring – FKM 69.5 ID x 3.0 (Qty 1)
Recommended Add-Ons
- Shaft Sleeve Kit: A65201136 Shaft Sleeve Kit
- Vacuum Pump Oil: Plus UG19 Oil
- Oil Mist Filter: EMF10 Filter
- Flushing Fluid: FF-005 Flushing Fluid
